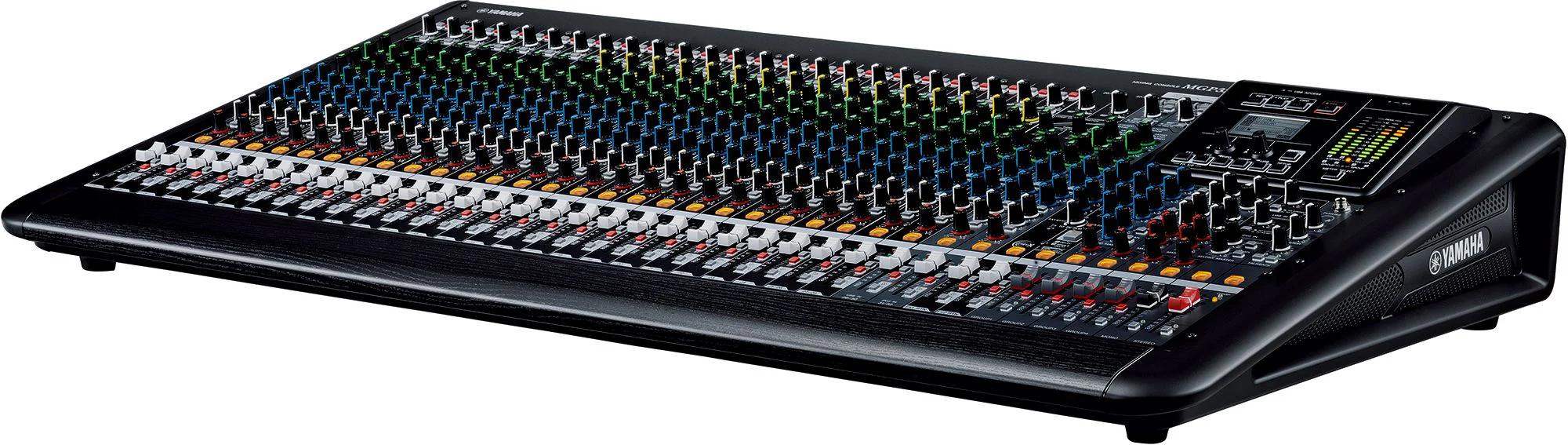

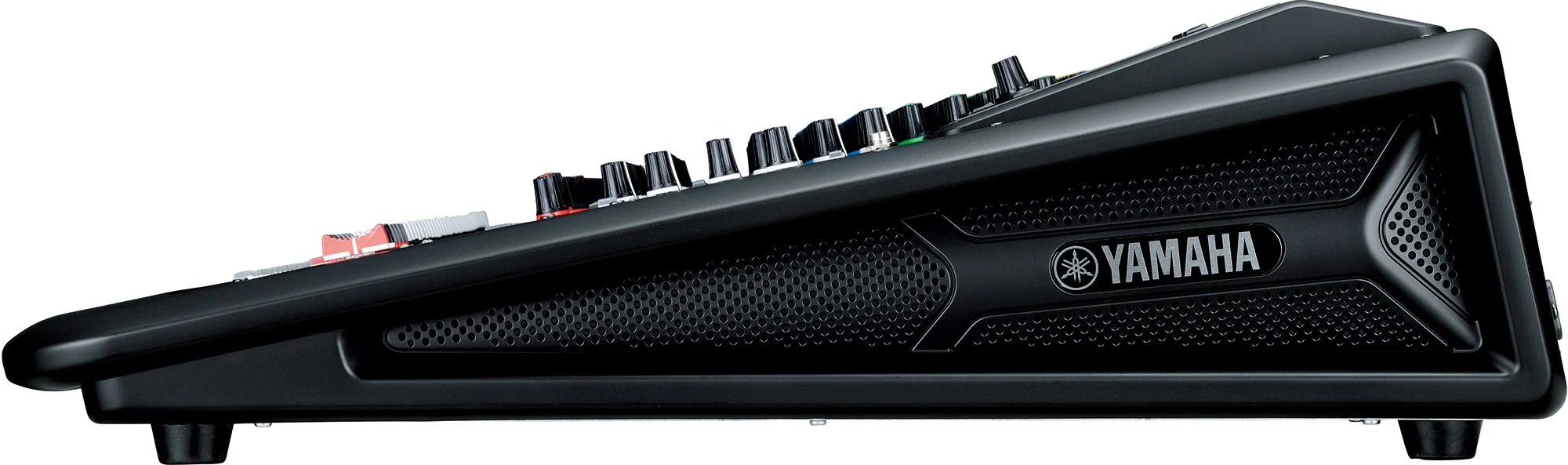

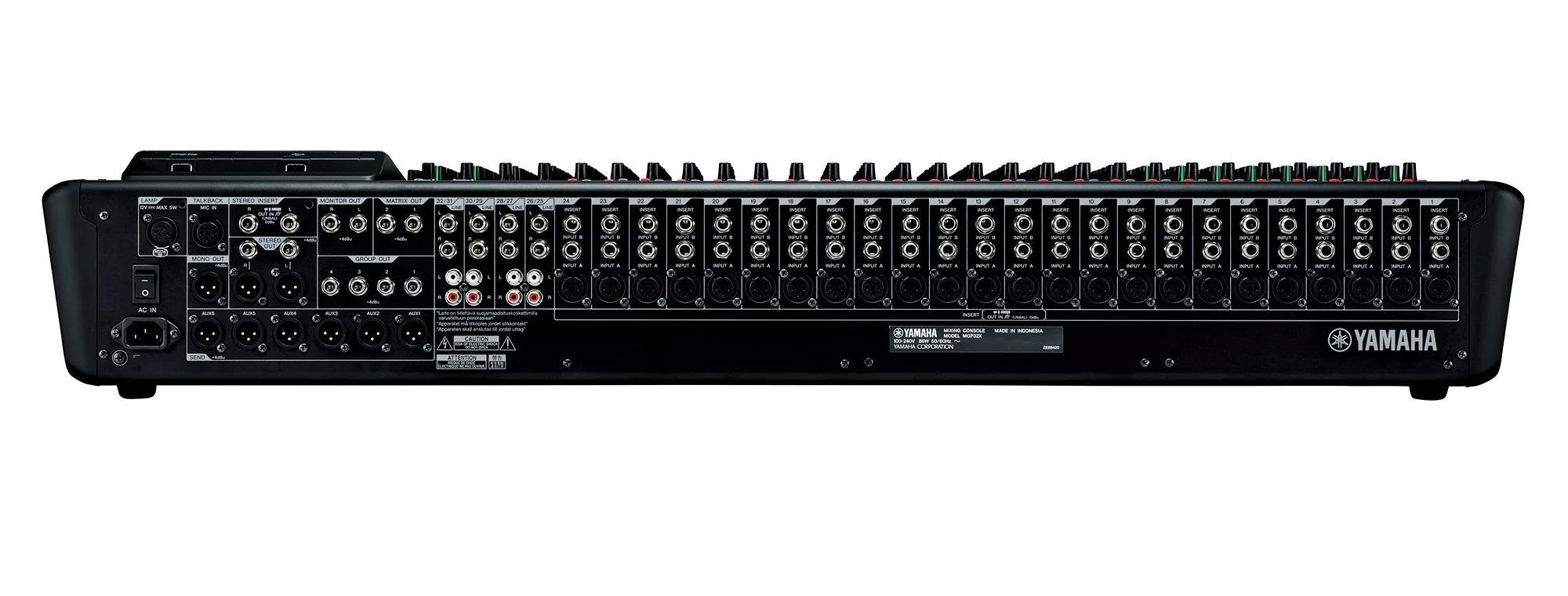

Yamaha MGP32X Mixing Console *DEMO*

32-Channel Premium Mixing Console

• 24 Mic Inputs with 48V Phantom Power and HPF per Channel
• 32 Line Inputs (24 mono and 4 stereo)
• 6 AUX Sends + 2 FX Sends
• 4 GROUP Buses + ST Bus
• 2 Matrix out
• 1 Mono out

		MGP32X
Outline
Mixing capability	Mixing channels	32 Line Inputs (24 mono and 4 stereo)
	GROUP	4 GROUP Buses + ST Bus
	AUX	6 AUX Sends + 2 FX Sends
	MATRIX	1 Matrix out
	On-board processors	FX1:REV-X(8 PROGRAM, PARAMETER control)/ FX2:SPX(16 PROGRAM, PARAMETER control)
	Input channel functions	-
I/O	Mic inputs	MIC: 24 (INPUTS HPF: 100Hz 12dB/oct)
	Phantom power	48V phantom power per channel
	Line inputs	LINE: 24 mono + 4 stereo, CH INSERT: 24 RETURN: 1 stereo
	Digital I/O	USB Device, iPod / iPhone
General specifications
Total harmonic distortion		0.02% (20Hz-20kHz@ +14dBu)
Frequency response		+0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz
Hum & noise level	Equivalent input noise	-128 dBu Equivalent Input Noise
	Residual output noise	-92 dBu Residual Output Noise
Crosstalk		-74dB @ 1kHz
Power requirements		100-240V 50Hz/60Hz
Power consumption		86W max
Dimensions	W	1,027mm (40.4")
	H	169mm (6.7")
	D	565mm (22.2")
Net weight		19kg (41.9lb)
